The Often-Overlooked Step Before Lead Testing: Turbidity Screening for EPA Method 200.8

Introduction

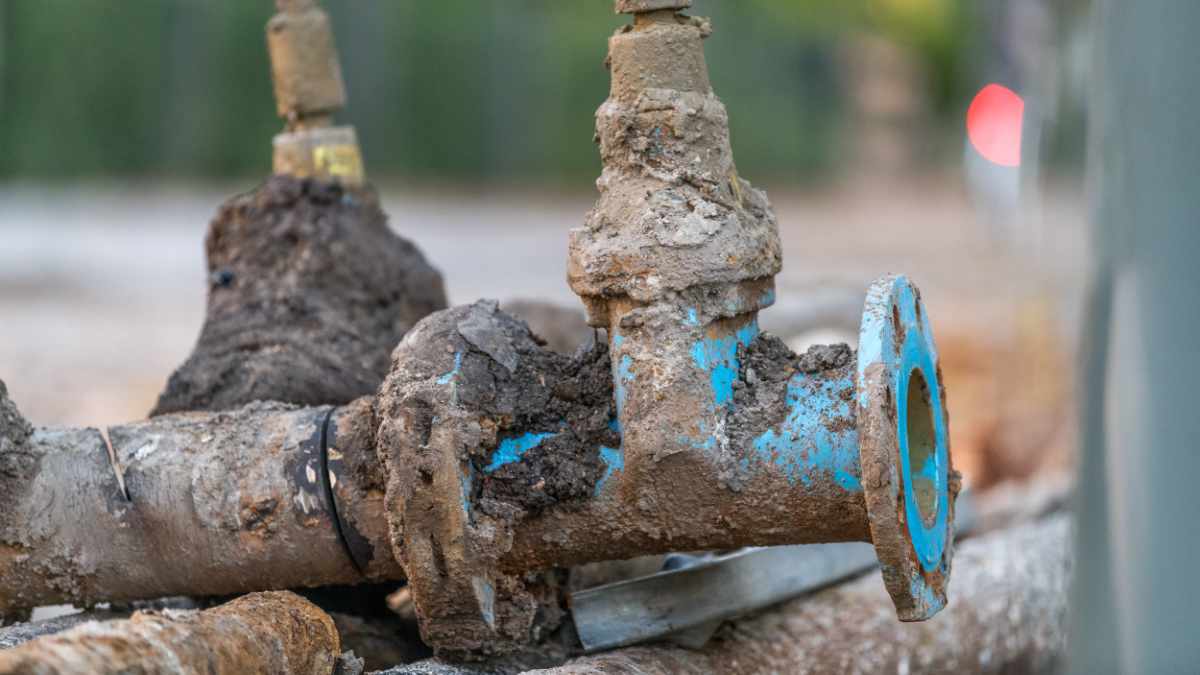

Lead testing continues to receive increased attention throughout the drinking water industry. Recent updates to the EPA's Lead and Copper Rule require more rigorous monitoring and the identification and replacement of lead service lines, increasing focus on accurate and defensible data in lead testing.

While most discussions surrounding lead analysis focus on ICP-MS instrumentation, calibration standards, and detection limits, an important step often receives far less attention: turbidity screening.

For laboratories analyzing drinking water samples by EPA Method 200.8, turbidity can determine whether a sample can be analyzed directly or requires digestion before analysis. Understanding this requirement—and performing it consistently—is an important part of generating reliable metals data.

Why Does Turbidity Matter?

Turbidity is a measure of the suspended particulate matter present in a water sample. These particles can include sediment, corrosion products, rust, and other insoluble materials that may contain or adsorb metals.

When samples contain elevated levels of suspended solids, dissolved metals are no longer the only source contributing to the final result. Metals associated with particulate matter may also be present. Because of this, samples exceeding the turbidity threshold specified by EPA Method 200.8 require additional sample preparation before analysis to ensure representative results are obtained.

The turbidity measurement itself is typically straightforward. However, when hundreds of drinking water samples are moving through a laboratory each week, even a simple screening step requires analyst time and careful attention to detail.

A Routine Task That Adds Up

In many laboratories, turbidity screening is performed manually using a benchtop turbidimeter. Samples are removed from racks, measured individually, documented, and then either routed directly to analysis or sent for digestion.

The procedure is familiar to most analysts, but it is also repetitive. During periods of increased sample volume, these manual measurements can consume significant laboratory time.

The importance of consistency should not be overlooked either. Turbidity screening serves as a decision point that determines the next step in sample preparation. A reliable measurement helps ensure samples requiring digestion are properly identified before metals analysis begins.

Automating Turbidity Screening

Laboratories automate many aspects of metals analysis, from sample digestion to analysis and data handling. Turbidity screening is another step that can be automated.

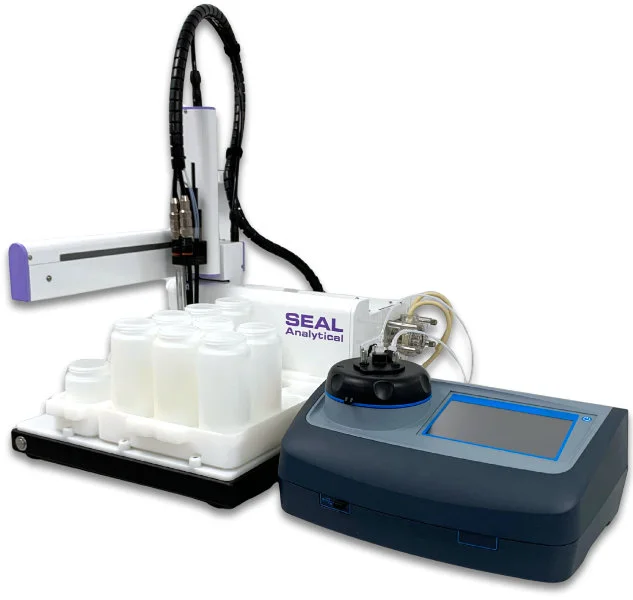

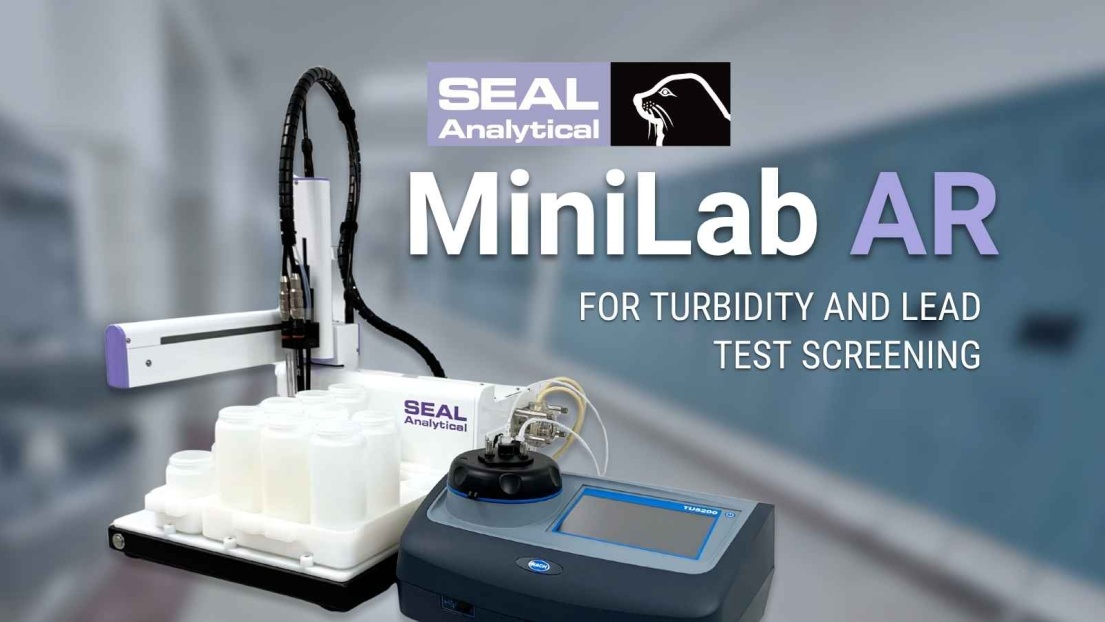

The SEAL MiniLab AR for Turbidity is well-positioned as a streamlined approach to automate the measurement of turbidity prior to lead and metals analysis. After the sample pH is confirmed, samples are automatically presented to the turbidity meter, measured, and documented without the need for continuous analyst involvement. Once results are recorded in the software, customized exports to LIMS can be easily generated for final reporting.

By automating this screening process, laboratories can standardize measurements, reduce repetitive sample handling, and quickly identify samples that exceed the 1 NTU threshold before ICP-MS analysis.

The system's compact benchtop footprint allows it to fit easily into existing laboratory environments, while direct data export and LIMS integration simplify sample tracking and record keeping.

Automating Lead and Metals Digestion

For samples exceeding the turbidity threshold, the next step is often acid digestion prior to metals analysis. This preparation ensures that metals associated with suspended particulates are brought into solution before analysis by ICP-MS or other analytical techniques.

While digestion is a routine procedure in metals laboratories, it also involves some of the most labor-intensive and safety-sensitive steps in the process. Analysts must accurately dispense concentrated acids, manage heating procedures, and reconstitute samples after digestion while maintaining consistency from sample to sample.

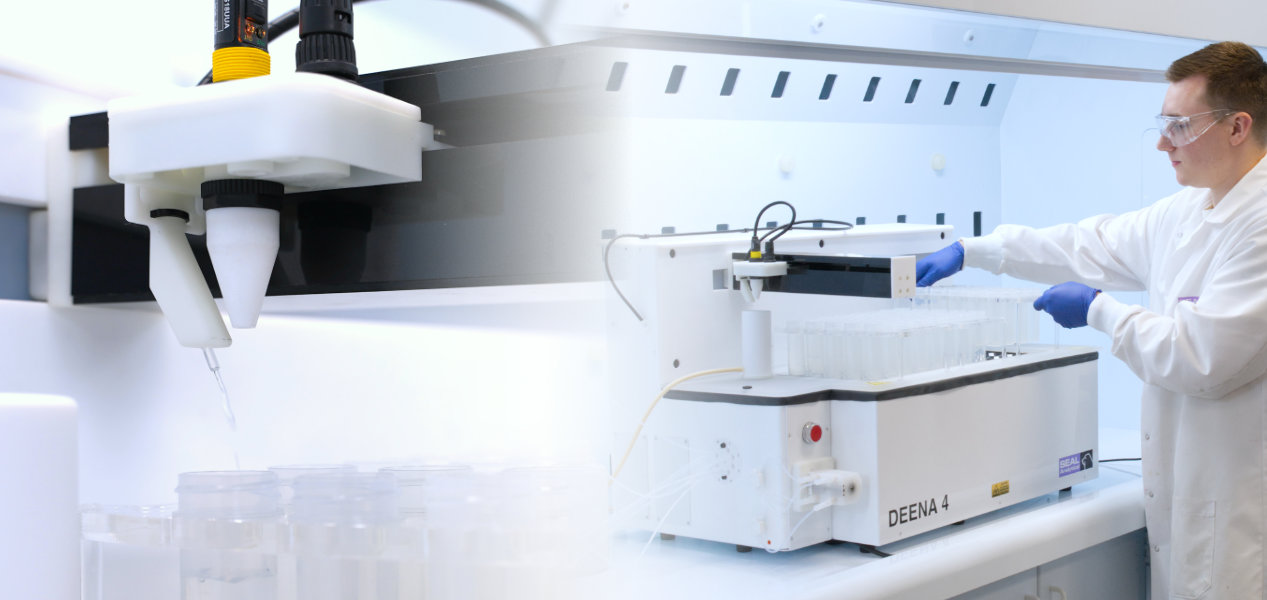

To automate these tasks, laboratories can utilize systems such as the SEAL DEENA 4 Automated Digestion System. Designed for metals digestion methods, including EPA 200.2 and EPA 3005A for lead and other metals in aqueous samples, the DEENA 4 automates reagent addition, heating, mixing, and sample reconstitution.

By automating the dispense of concentrated acids such as nitric acid and hydrochloric acid, the system can help reduce analyst exposure to hazardous reagents while improving consistency between samples. Once reagents are added, samples are automatically transferred to the digestion block, heated according to the selected method, and returned for final volume adjustment after digestion is complete.

The DEENA 4 can be installed within a laboratory fume hood or configured with its own dedicated enclosure. This enclosure includes a vacuum connection and HEPA filtration system designed to manage acidic fumes while providing a clean environment for trace metals applications.

Together, automated turbidity screening and automated digestion can help simplify sample preparation for drinking water metals analysis, allowing laboratories to focus more of their attention on producing accurate, reliable analytical results.

Preparing for the Future of Drinking Water Testing

As drinking water monitoring continues to evolve, laboratories are placing greater emphasis on consistency, traceability, and data quality. Recent regulatory changes and ongoing lead service line replacement programs are expected to keep lead and metals testing in the spotlight for years to come.

While turbidity screening may not be the most visible part of the analytical process, it remains an important step in ensuring samples are properly prepared before metals analysis. Automating this routine measurement helps laboratories maintain consistency while allowing analysts to focus on the more technical aspects of producing high-quality analytical results.
